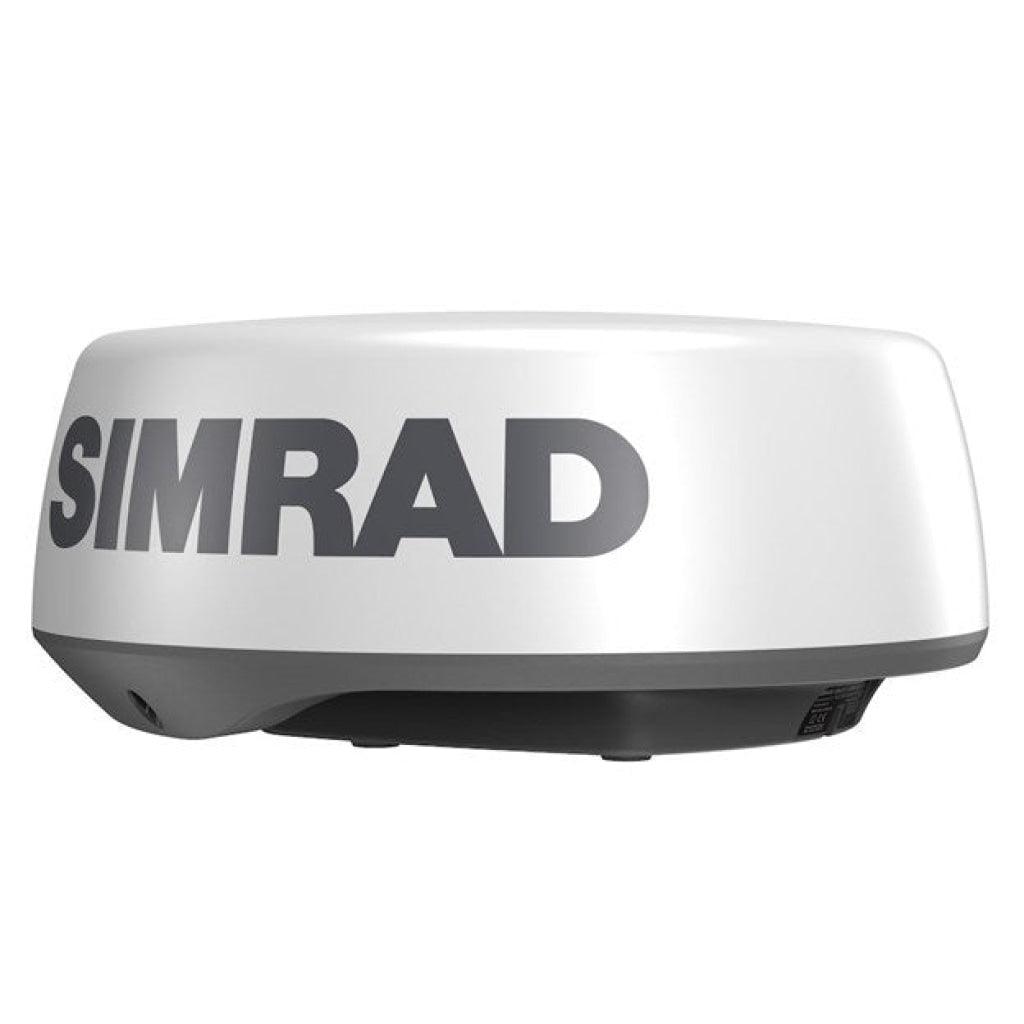

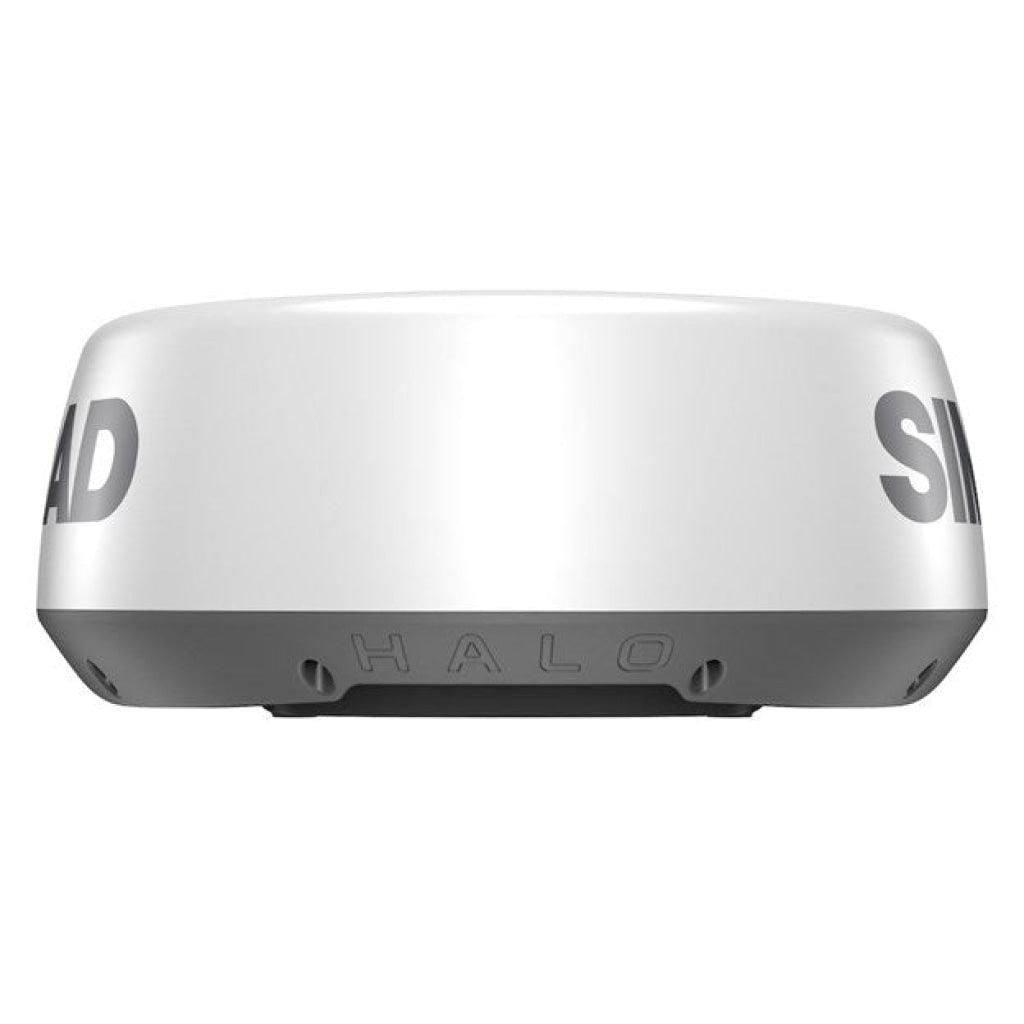

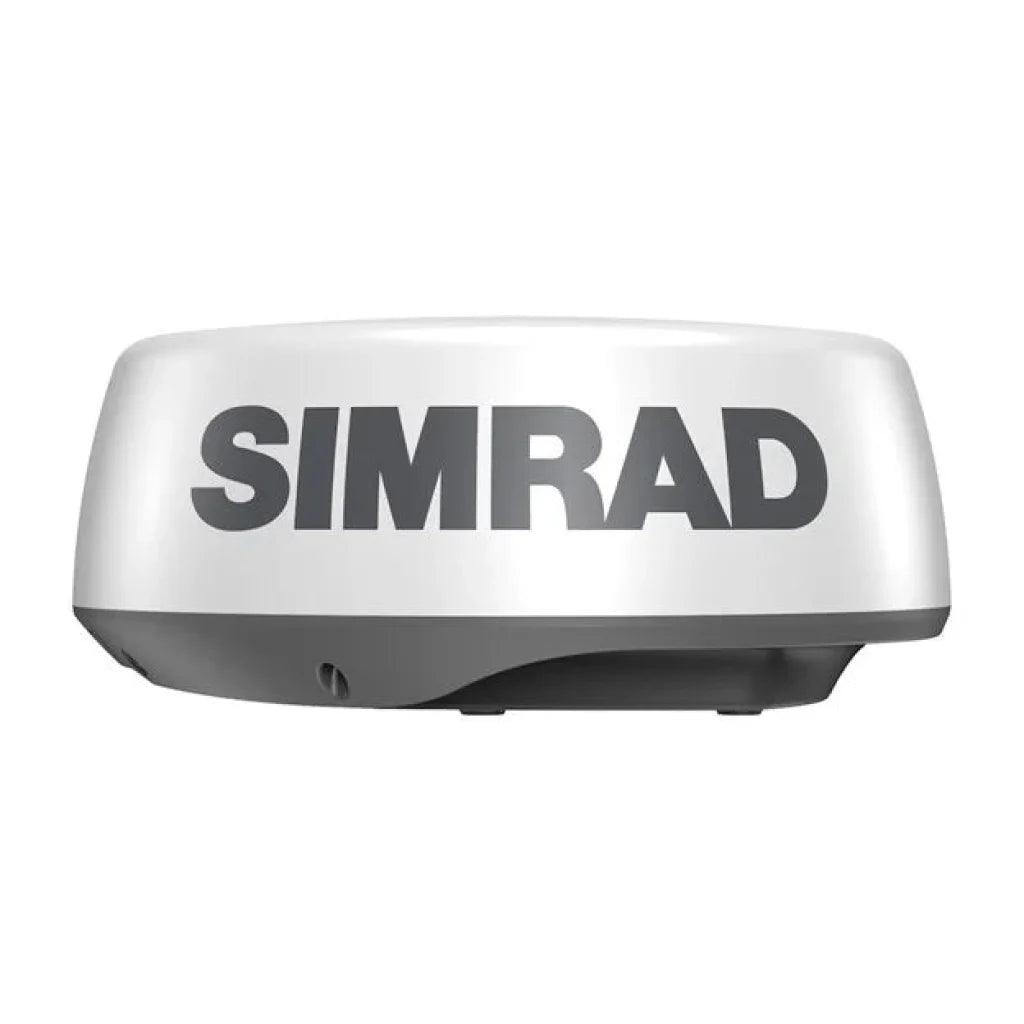

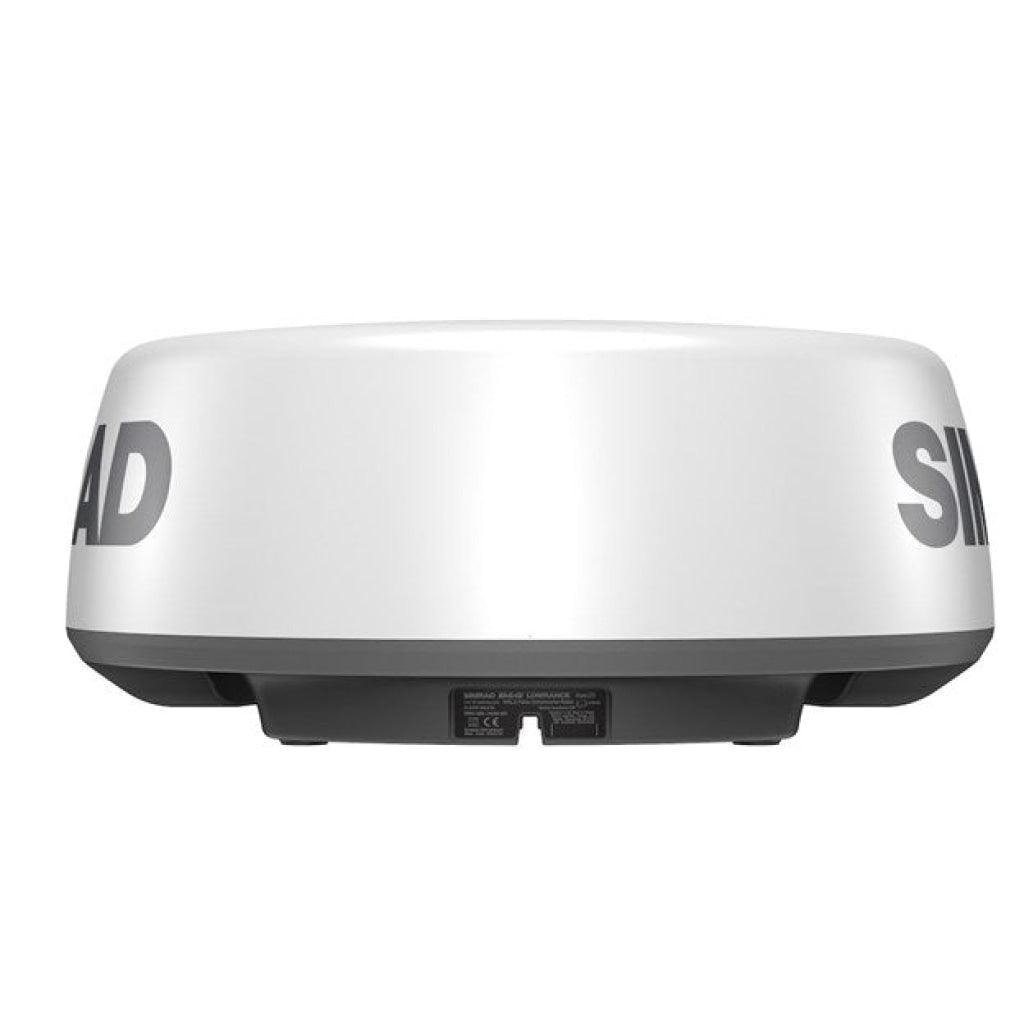

Radar Simrad Halo20
O modalitate rentabilă de a crește gradul de conștientizare a situației și de evitare a coliziunilor, HALO20 este un radar cu dom compact cu tehnologie de compresie a impulsurilor care detectează pericolele de coliziune și alte ținte în apropiere și până la 24 de mile marine distanță. Cu amprenta sa redusă și profilul redus, HALO20 este soluția perfectă de radar pentru navigatorii care țin cont de buget, cu nave mici de pescuit sportiv și bărci de zi.
Overview
HALO20 radar is a cost-effective solution for boaters to increase situational awareness and collision avoidance, detecting collision hazards and other targets nearby and up to 24 nautical miles away. With its small footprint and low profile, HALO20 is the perfect radar solution for more budget-conscious buyers with smaller sportfishing vessels and dayboats.
HALO20 radar also delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Boaters can monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets. Whether navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give boaters a clear and current picture of their surroundings.
Unrivalled Short-to-Mid-Range Performance
Extend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection, but provides precise target definition with minimal clutter.
Better Situational Awareness, Collision Avoidance
HALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.
Easy to Use
Harbour, Offshore and Weather modes tune HALO20 radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.
Ready When You Are
HALO20 radar wakes instantly from its low-power standby mode, delivering high-speed radar coverage exactly when and where you need it. Even if your HALO20 is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.
Key Features
- 6W Pulse Compression
- 24 nm range from a compact 20-inch dome
- Unrivalled short range
- Radiation safe
- Easy operation with harbour, offshore and weather mode
- MARPA target tracking
- InstantOn™
- Low Power Consumption
- Guard Zones
| Compliance | CE, FCC (ID:RAYHALO20), IC: 978B-HALO20 |
| Environmental | IEC60945 : 2002 |
| Operating Temperature | -25° to +55°C (-13° to +130°F) |
| Relative humidity | +35° C (95° F), 95% RH |
| Waterproof | IPX6 |
| Max relative wind velocity | 51 m/sec (100 Knots) |
Power & Dimensions
| Power consumption (with 10m cable) | Operating: 17.to 20W at 13.8 V |
| Standby | 3.9 W (Typ.) at 13.8 V DC ~ 170 mA |
| DC input (at radar end of cable) | 9 V to 31.2 V DC (12/24 V systems) |
| Reverse polarity protection | Yes |
| Minimum startup voltage | 10.75 V DC |
| Transmitter source (pre-heating time) | No magnetron – Instant On |
| Outside dimensions | Ø Diameter 510 mm (20”), Height 223 mm (8.8”) |
| Scanner weight (no cable) | 5.9kg (13 lbs) |
Radar and Antenna parameters
| Radar ranges | 100 m (328 ft) to 24nm with 17 range settings, (nm/sm/km) |
| Rotation (mode dependent) | 20-24rpm |
| Transmitter frequency | X-band - 9.4 to 9.5 GHz |
| Transmitter source (warm-up time) | No Magnetron – all solid state. Instant On™ |
| Plane of polarization | Horizontal Polarization |
| Transmitter peak power output | 6W |
| Minimum range | 6 m (19.7 ft) |
| Sweep repetition frequency | 700-2400 Hz (mode dependent) |
| Pulse length | 0.04 - 64 usec |
| Sweep bandwidth | 48 MHz max |
| Horizontal beam width (Tx and Rx antenna) | 4.9° nominal (-3 dB width) |
| Target Seperation Control | Not available |
| Vertical beam width (Tx and Rx antenna) | 25° (-3B width nominal) |
| Side lobe level (Tx and Rx antenna) | Below -18 dB (within ±10°);Below -24 dB (outside ±10°) |
| Noise figure | Less than 5 dB nominal |
Communications/Cabling
| Protocol | Ethernet 100 Base T |
| Maximum inter connecting cable length | 30 m (98.5 ft) – available as option, use NEP-2 for longer cable runs |
