Caracteristici Fizice şi Performanţe
|DIMENSIUNI FIZICE||12.5" x 7.3" x 2.7" (318 x 185 x 69 mm)|
22,4 x 12,5 cm; 10,1" (25,7 cm) diagonală
|REZOLUŢIE AFIŞAJ||1024 x 600 pixels|
|TIP AFIŞAJ||WSVGA display|
4.1 lbs (1.85 kg)
|REZISTENŢĂ LA APĂ||IPX7|

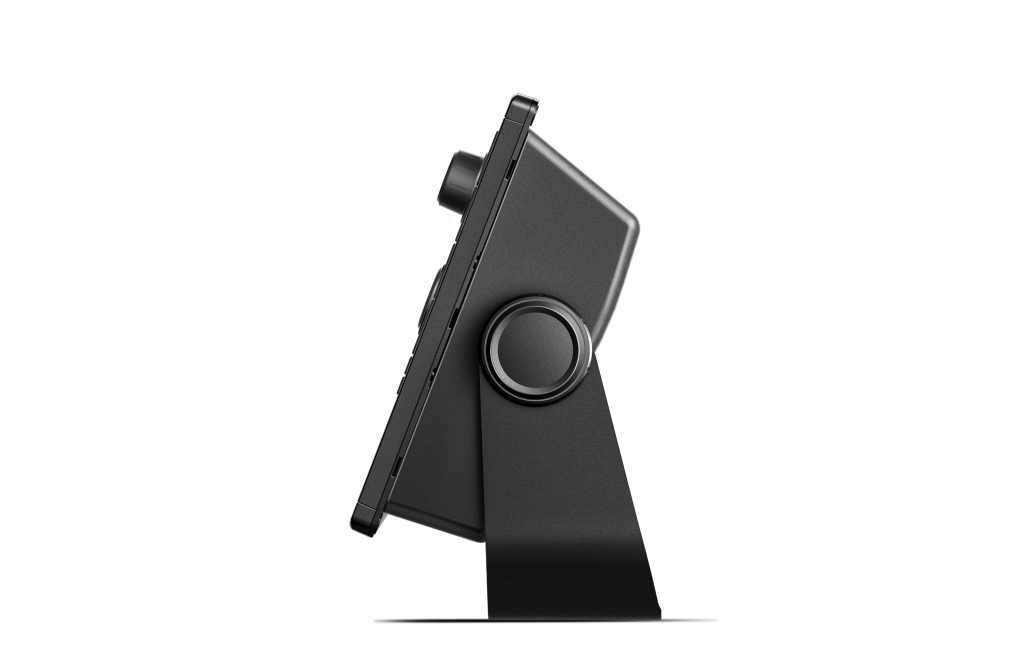

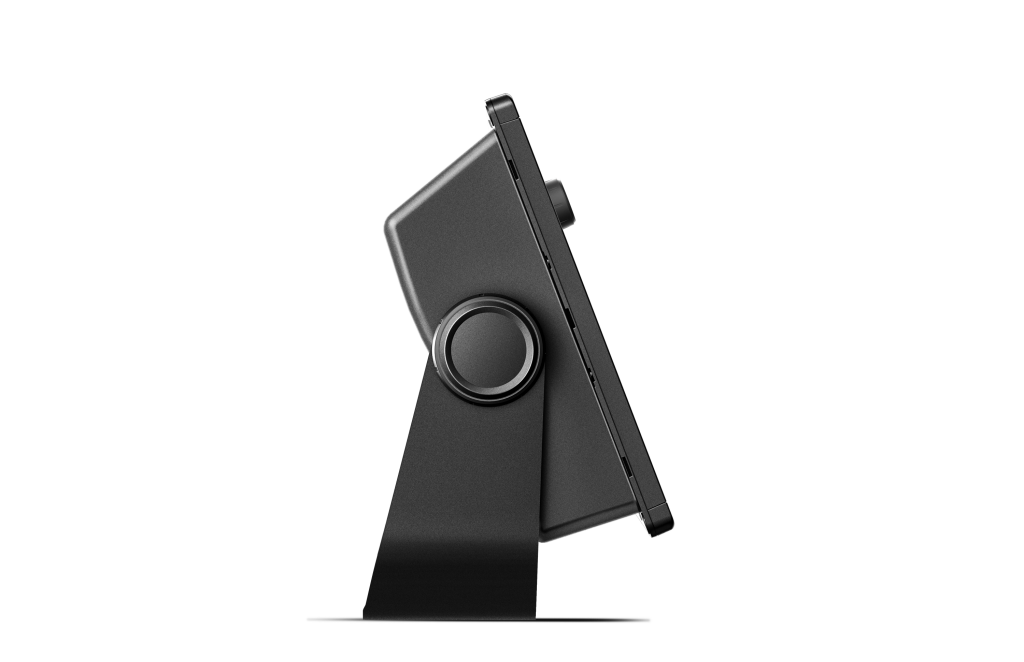

|MOUNTING OPTIONS||Bail or flush|
Max power usage at 10 Vdc: 32.4 W
Typical current draw at 12 Vdc: 1.9 A
Max current draw at 12 Vdc: 2.7 A
|ANTENNA||Internal or external over NMEA 2000|
|PUTERE DE TRANSMISIE||1 kW traditional; 1 kW CHIRP|
|RECEIVER||10 Hz high-sensitivity|
|PORTURI GARMIN MARINE NETWORK™||
Hărţi şi Memorie
|ACCEPTĂ CARDURI DE DATE||2 SD™ cards|
|PUNCTELE DE TRECERE||5,000|
|JURNAL DE TRASEU||50,000 points; 50 saved tracks|
|GARMIN RADAR COMPATIBLE|
|GARMIN SONAR COMPATIBLE||
|GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS)|
|SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)|
|SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)|
|GARMIN METEOR™ AUDIO SYSTEM COMPATIBLE|
|SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS|
|GSD™ BLACK BOX SONAR SUPPORT|
|GCV™ BLACK BOX SONAR SUPPORT|
|WIRELESS REMOTE COMPATIBLE|
Funcţii şi Specificaţii Sonar
|SONAR CU FRECVENŢĂ DUBLĂ (50/200 KHZ)|
|SONAR (77/200 KHZ) CU FASCICUL DUBLU|
Yes with CHIRP (built-in)
|ADÂNCIME MAXIMĂ||5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)|
|BLOCARE ECRAN PÂNĂ LA FUNDUL APEI (ARATĂ IMAGINILE DE LA FUNDUL APEI ÎN SUS)|
|GRAFIC ŞI JURNAL CU TEMPERATURA APEI|
|SONAR HISTORY REWIND|
|NMEA 2000® COMPATIBLE|
|TRANSDUCER PIN NUMBERS||12|
|NMEA 0183 INPUT PORTS||
|NMEA 0183 OUTPUT PORTS||
Experience an advanced all-in-1 solution with our 10-inch GPSMAP 1022xsv keyed combo. It has built-in support for Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü. It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

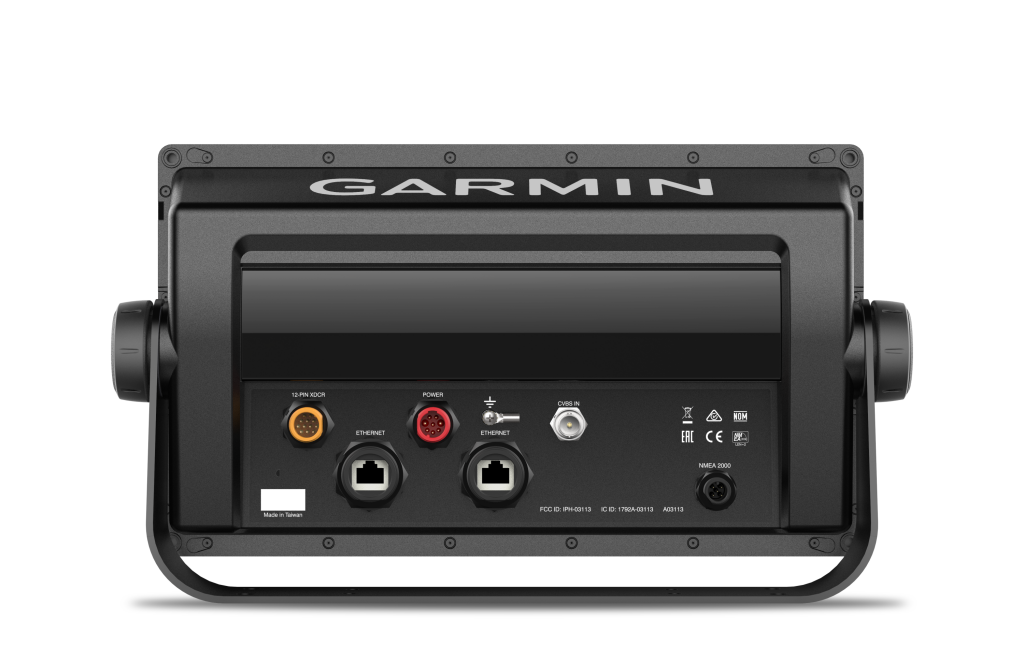

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.
Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).

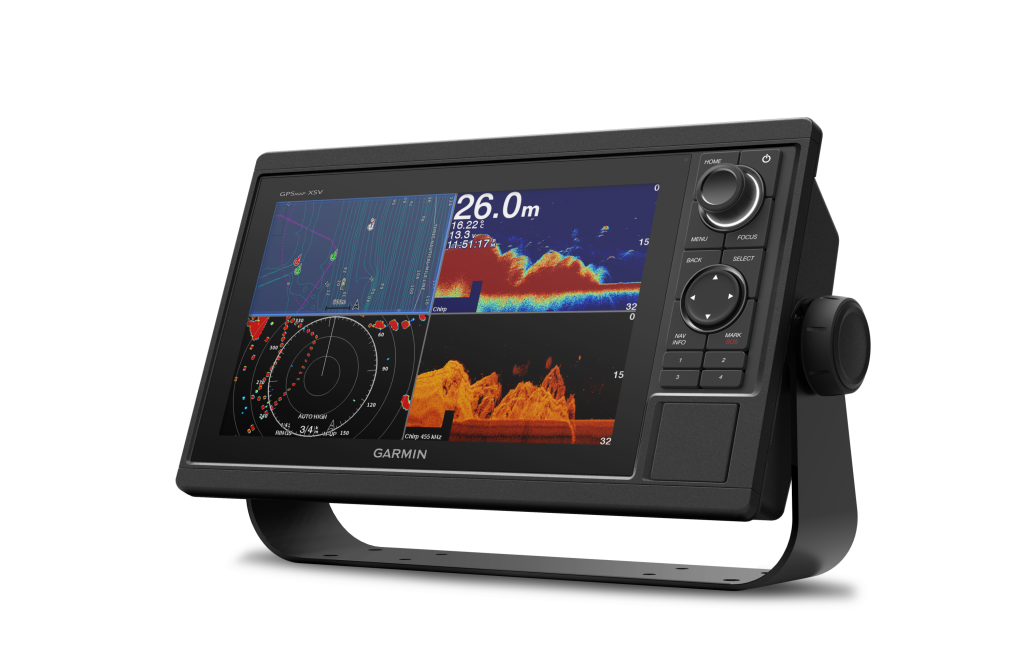

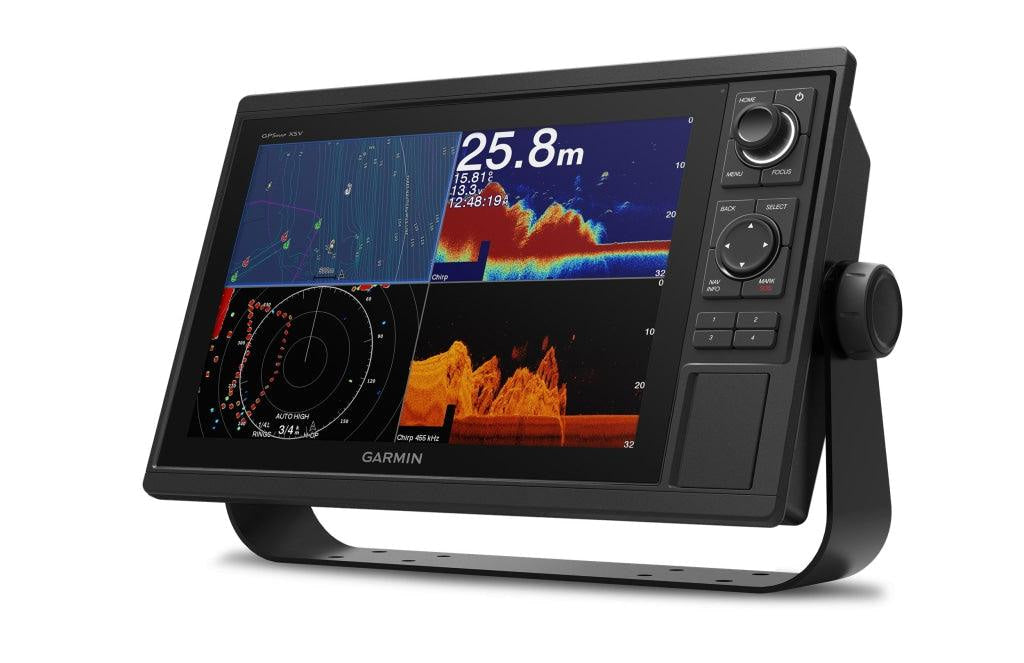

Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.
Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

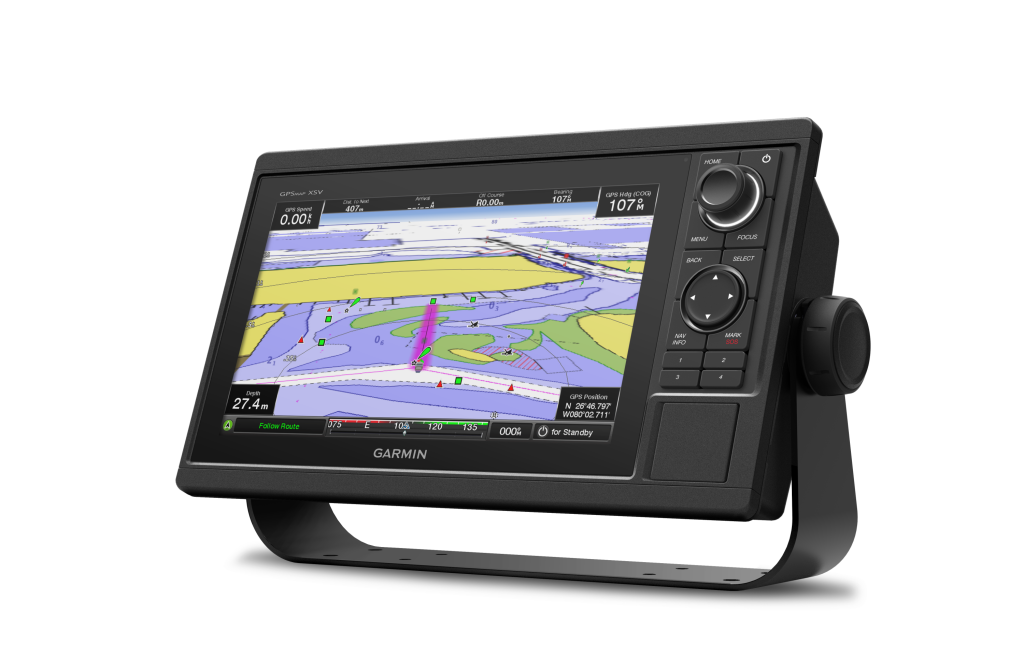

Upgrade to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as high-resolution relief shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.

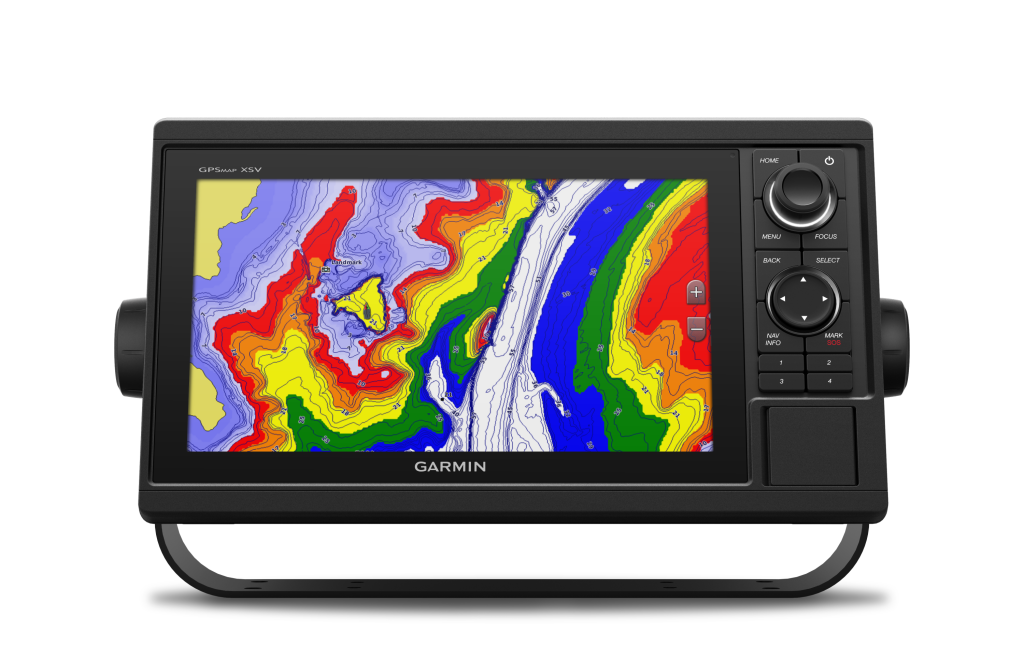

Instantly create personalized HD fishing maps on screen with 1-foot contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

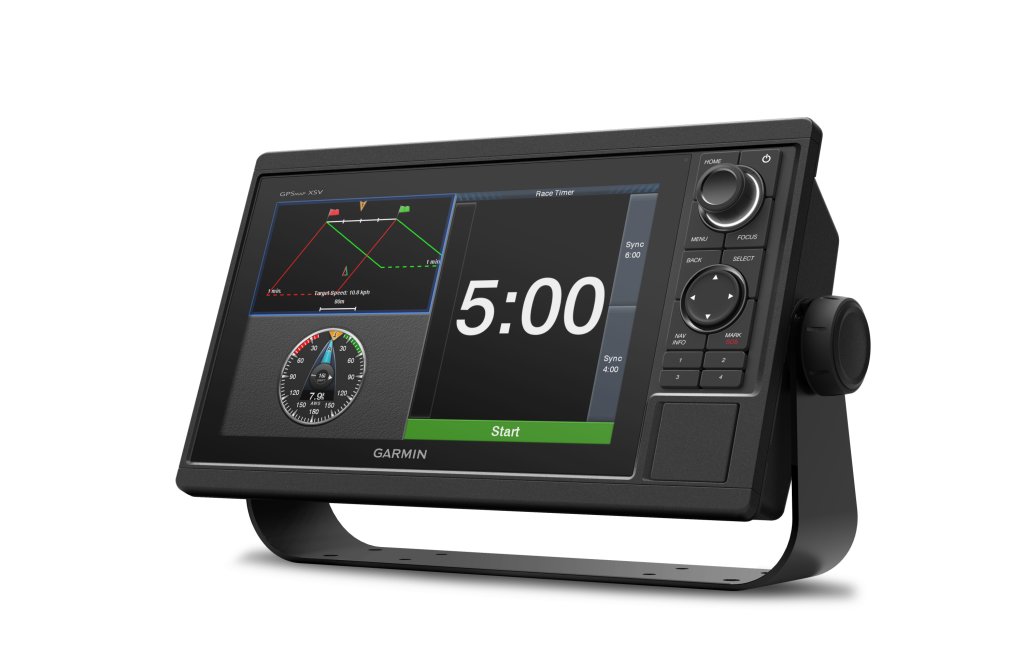

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.
¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.
