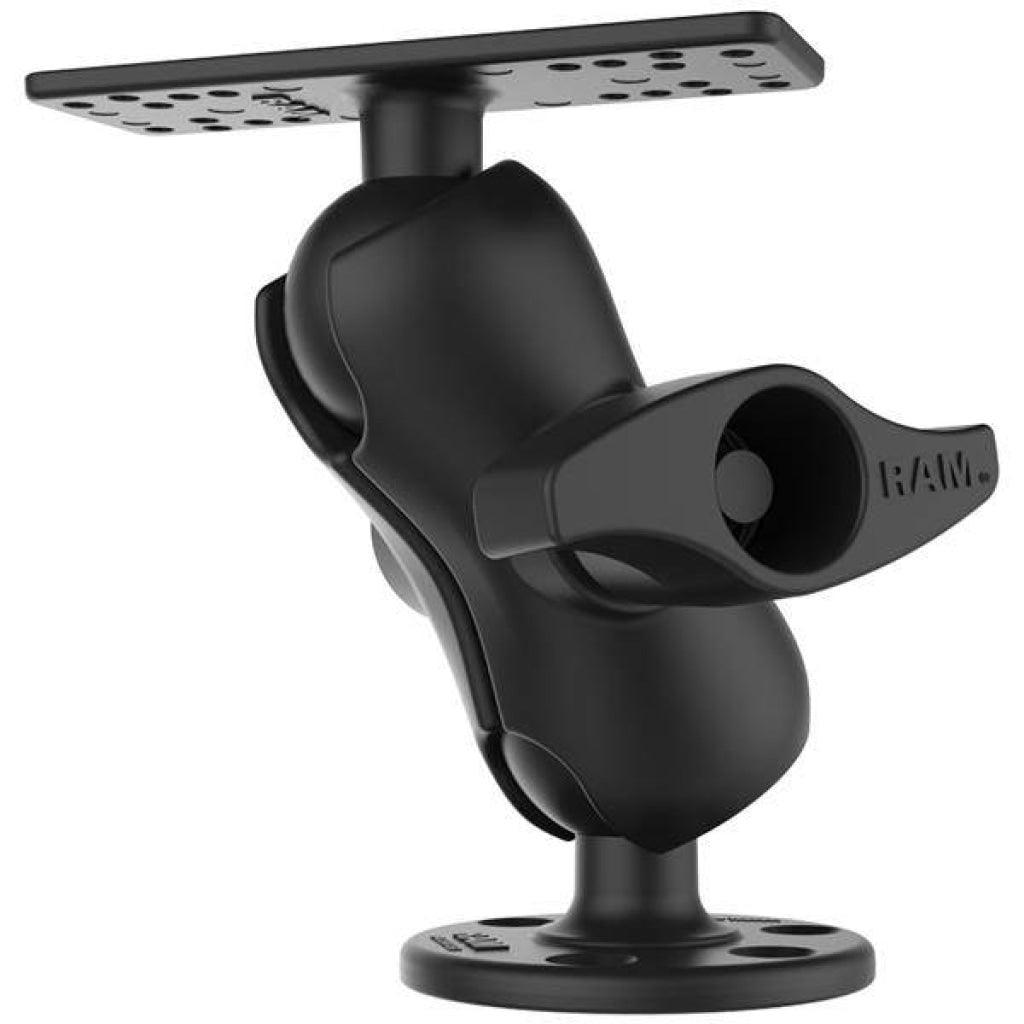

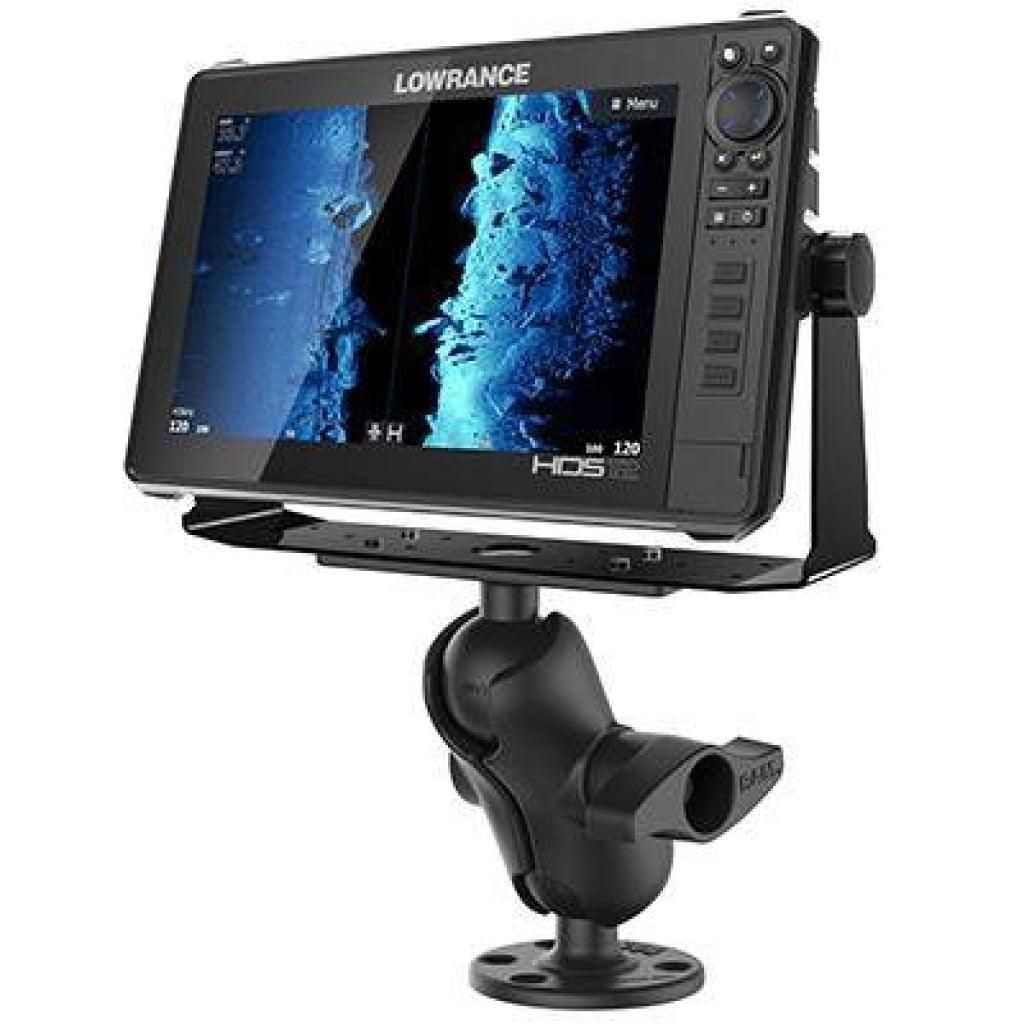

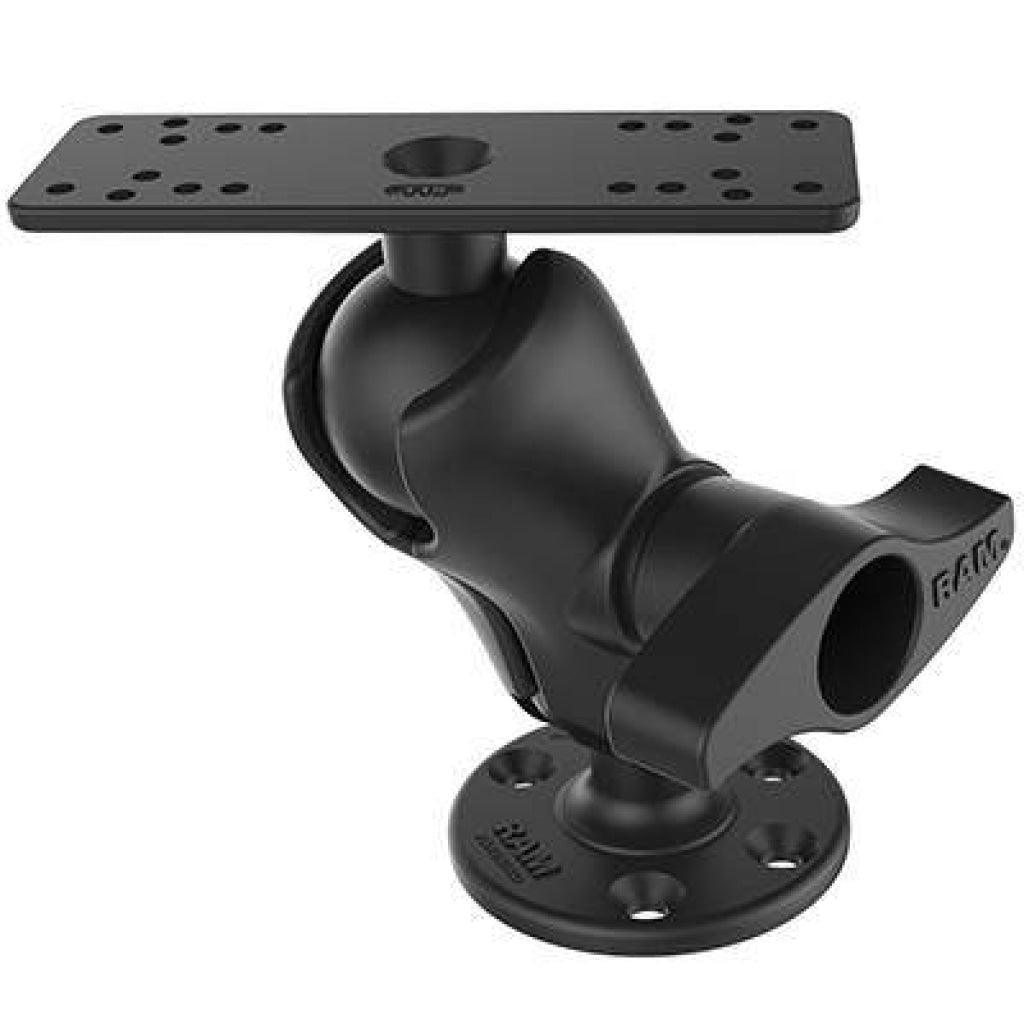

Suportul pentru sonar RAM-D-115-C constă dintr-o bază cu o bilă de dimensiune D cu diametrul de 2,25", un braț scurt și o placă marină de 6,25" x 2" cu o bilă de dimensiune D pentru susținerea dispozitivelor mai mari. Această placă marină conține diferite combinații de găuri pre-găurite și este o potrivire directă pentru suportul diferitelor sonare cu diagonale de 9 pana la 12 inch. Suportă dispozitive precum:
Garmin ECHOMAP Plus 72-97 Series
Garmin ECHOMAP UHD 62-95 Series
Garmin ECHOMAP Ultra 102sv
Garmin ECHOMAP Ultra 106sv
Garmin Fishfinders and GPS Chartplotters
Garmin GPSMAP 1223
Garmin GPSMAP 1223xsv
Garmin GPSMAP 1243
Garmin GPSMAP 1243xsv
Garmin GPSMAP 8410
Garmin GPSMAP 8410xsv
Garmin GPSMAP 8412
Garmin GPSMAP 8412xsv
Garmin GPSMAP 8416
Garmin GPSMAP 8416xsv
Garmin GPSMAP 8610
Garmin GPSMAP 8610xsv
Garmin GPSMAP 8612
Garmin GPSMAP 8612xsv
Garmin GPSMAP 8616
Garmin GPSMAP 8616xsv
Garmin GPSMAP 922
Garmin GPSMAP 922xs
Garmin GPSMAP 923
Garmin GPSMAP 923xsv
Garmin GPSMAP 942
Garmin GPSMAP 942xs
Garmin GPSMAP 943
Garmin GPSMAP 943xsv
Garmin Striker Plus 9sv
Garmin Striker Vivid 9sv
Garmin echoMAP Chirp 72-95 Series
Humminbird 800 & 900 Series
Lowrance Elite FS 7
Lowrance Elite FS 9
Lowrance Fishfinders and GPS Chartplotters
Lowrance HDS Carbon 7
Lowrance HDS LIVE 12
Lowrance HDS LIVE 9
Lowrance HOOK-9
Lowrance Hook Reveal 7 Series
Lowrance Hook Reveal 9 Series
Raymarine Fishfinders and GPS Chartplotters
Product Weight
3.2 lb
Product Dimensions
Overall Height: 7.325"
Socket-to-Socket Length
3.6"
Hole Pattern [eng]
See Drawings
3-Hole 120 Degree (Large)
Plate Size [eng]
Top Plate: 6.25" x 2"|Bottom Plate: 3.68" Diameter
Weight Capacity
Standard Use: 6 lbs|Heavy-Duty Use: 5 lbs
Materials
Marine-grade aluminum
Packaging Type
Retail Box
Mounting Type
Drill Down
Ball & Socket Size
D Size 2.25" (Holds 6 lbs)
Product Feature
Complete flat surface, drill-down mounting solution compatible with 9"-12" fishfinder gimbal brackets
RAM® Mounts ball and socket technology allows for near-infinite adjustability
Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty
Socket Arm Length
Short Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
